Send InquiryCentre Seal Cum Three Side Seal Pouch Machine
Centre Seal Cum Three Side Seal Pouch Machine Specification
- Type
- Packaging Line
- Feature
- Heavy Duty Machine, Durable, Highly Efficient
- Automatic Grade
- Automatic
- Drive Type
- Electric
- Weight (kg)
- 2000 Kilograms (kg)
Centre Seal Cum Three Side Seal Pouch Machine Trade Information
- Minimum Order Quantity
- 1 Unit
- Delivery Time
- 15-20 Days
About Centre Seal Cum Three Side Seal Pouch Machine
Specification Number of Station [ Cutting ] One Number of Station [bottom Seal] Two Number of Station [side Seal] Two Number of Station[centre Seal] One Number of Station[cooler] One Machine Length 5950 Mm [aprox] Machine Width 1950 Mm [aprox] Machine Height 2150 Mm [aprox] Minimum Pouch Size Length 50 Mm X Width 60 Mm Maximum Pouch Size Length 500mm X Width 300mm Maximum Web Size 620 Mm Maximum Machine Speed -12+ 40 Micron 120 Pcs/min[for 200 Mm] Unwind Drive 2 Hp Vfd Synchronised to Main Drive Cooler Function Pneumatic * Cutter Function Pneumatic * Sealer Functio [ Bottom] Pneumatic * Machine Color Vip Blue & Swan White Weight of Machine 2000 Kgs. [ Aprox] Servo Motor 7.15 Nm Unwind Motor 2.0 Hp. Electrical Load 18 K.w. Sealing Area [bottom Seal] 10 & 15 Mm [ With Machine] Sealing Area [side Seal] 5-15 Mm Sealing Area[ Centre Seal] 10-20 MmFAQs of Centre Seal Cum Three Side Seal Pouch Machine:
Q: What type of drive does the Centre Seal Cum Three Side Seal Pouch Machine use?
A: The Centre Seal Cum Three Side Seal Pouch Machine uses an electric drive.Q: Is the Centre Seal Cum Three Side Seal Pouch Machine automatic?
A: Yes, this machine is automatic.Q: What is the approximate weight of the Centre Seal Cum Three Side Seal Pouch Machine?
A: The approximate weight of the machine is 2000 kilograms (kg).Q: What type of applications is the Centre Seal Cum Three Side Seal Pouch Machine best suited for?
A: The machine is best suited for packaging line applications.Q: What are the key features of the Centre Seal Cum Three Side Seal Pouch Machine?
A: The key features include its heavy-duty build, durability, and high efficiency.Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Pouch Making Machine Category
Stand Up Pouch Making Machine
Minimum Order Quantity : 1 Unit
Automatic Grade : Automatic
Drive Type : Electric
Feature : Other
Type : Other, Stand Up Pouch Machine

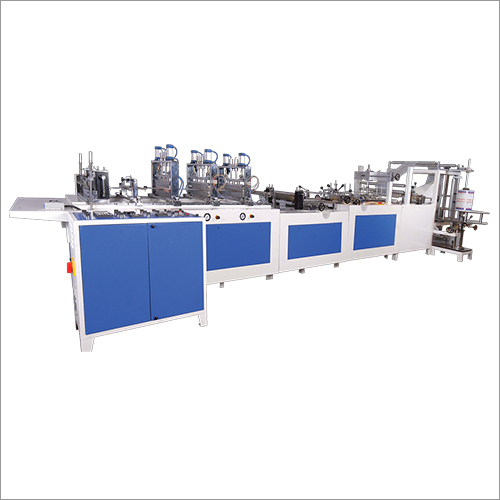

Three Side Seal Pouch Machine
Minimum Order Quantity : 1 Unit
Automatic Grade : Automatic
Drive Type : Electric
Feature : Heavy Duty Machine, Durable, Highly Efficient
Type : Packaging Line
Centre Seal Pouch Machine
Minimum Order Quantity : 1 Unit
Automatic Grade : Automatic
Drive Type : Electric
Feature : Heavy Duty Machine, Durable, Highly Efficient
Type : Packaging Line

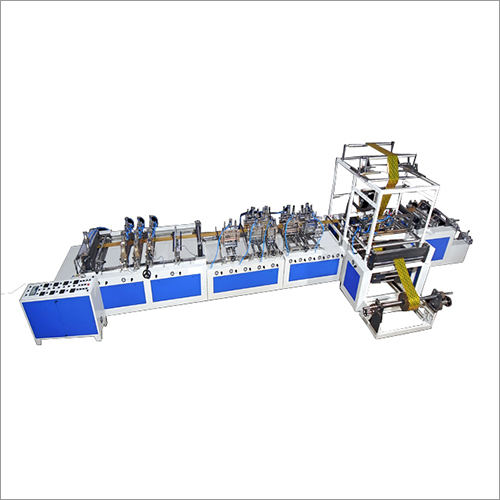

Stand Up Pouch Machine
